DPM Mechanical Recoil Reduction System for Wilson Combat EDC X9 4″ Barrel
This DPM Mechanical system works due to the multi-spring intricate rod (three springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame.

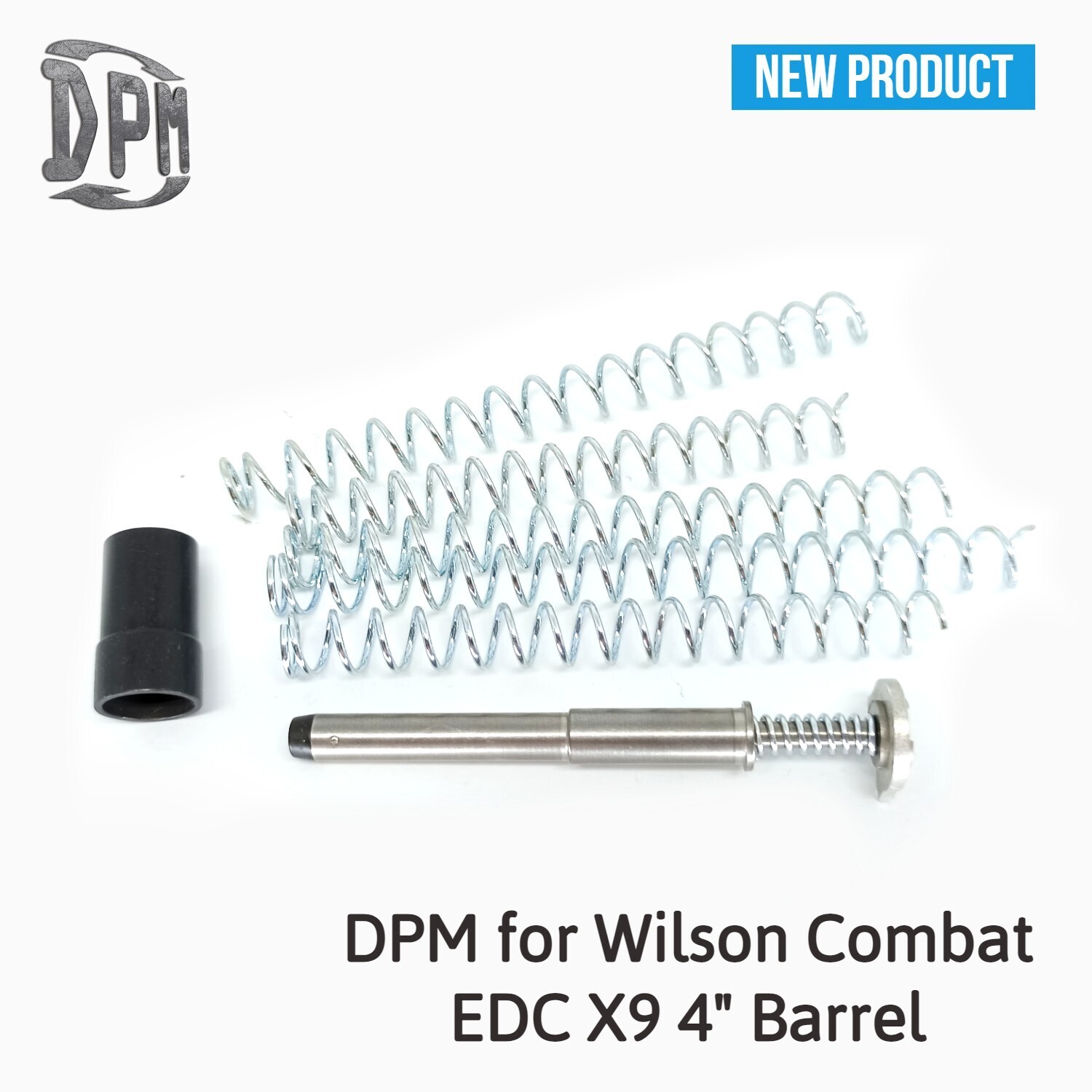

The system includes 1 Bushing and 5 different in length external springs.
The Spring Plug must always be installed when the DPM Recoil Rod and springs are used.
The external springs are different in length, the long spring is heavy and the short is light so the shooter can fine tune the pistol on the opening and locking positions (slide on the battery) according to his/hers personal standards.
Power Rates
Slide on the battery (idle position)
Short: 7 Lbs
Short/Medium: 8 Lbs
Medium: 9 Lbs
Medium/Long: 10 Lbs
Long: 11 Lbs
Total Force : 11 kgs / 24 lbs (approx.)
Overall Advantages
