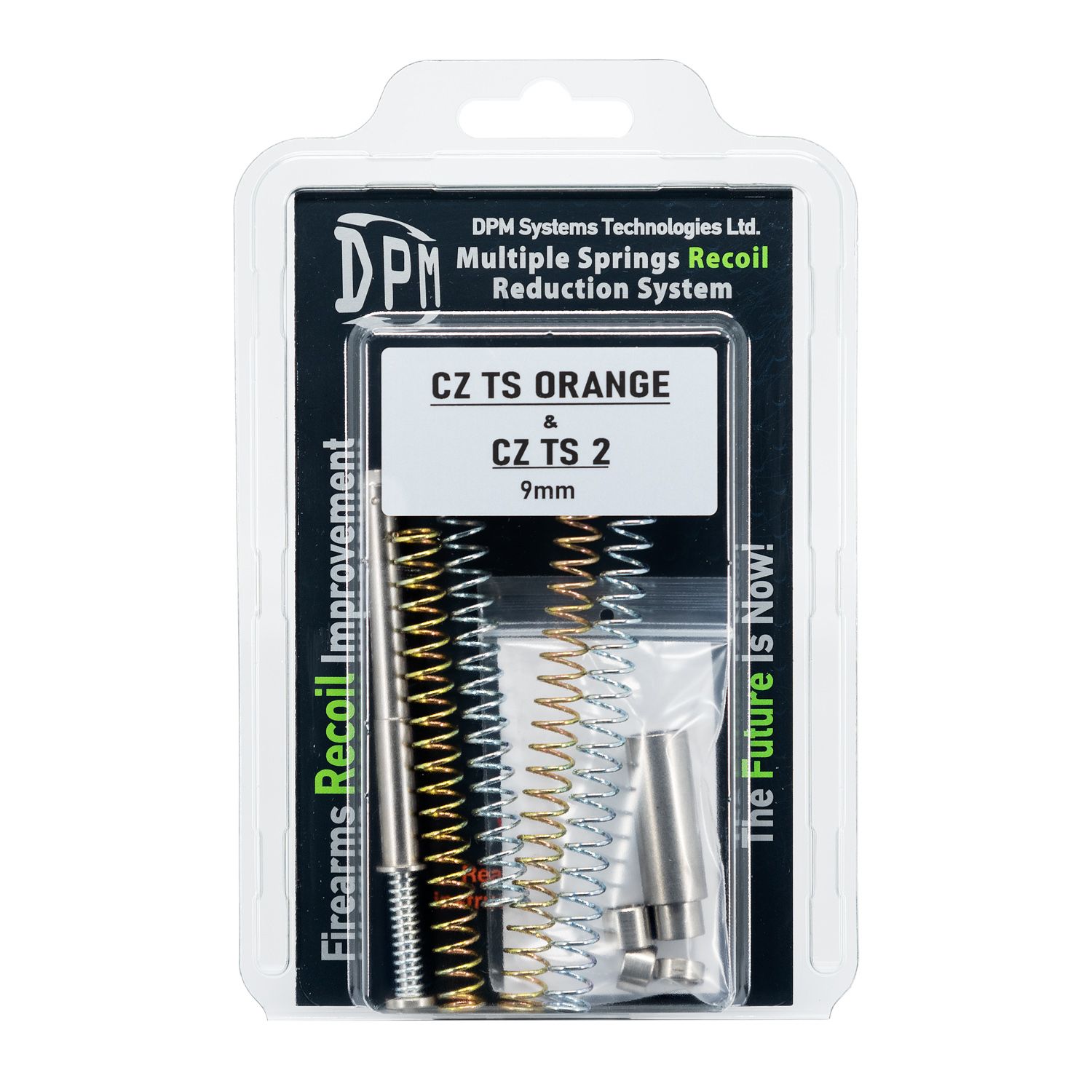

DPM Mechanical Recoil Reduction System for CZ TS 2 & TS Orange 9mm - 12 Combinations

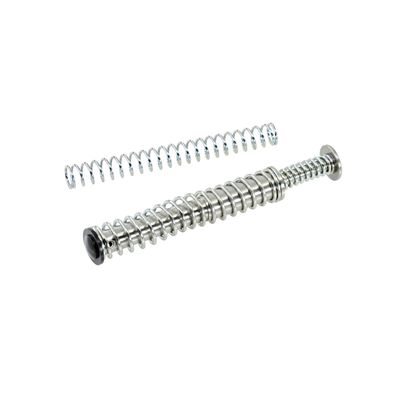

The DPM Mechanical Recoil Reduction Rod is a direct replacement for the stock recoil rod and does not change the configuration of the pistol.

This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame. The system includes 4 different powered springs and 3 different sized spacers so the user can fine tune the opening and locking position forces on the pistol's slide. The springs wire diameter is 1.0mm.

Following are the power rates of each spring and spacer.

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power Rates of the External Springs - Slide on the battery (closed).

The 2 Gold Springs are softer and 2 Silver Springs are heavier.

• S 1 Gold Short (23.5 coils): 5.7 lbs
• S 2 Gold Long (25 coils): 6.6 lbs
• S 3 Silver Short (23.5 coils): 7.3 lbs
• S 4 Silver Long (25 coils) : 8.4 lbs

Power Rates of the spacers - Slide full open position.

Attention: The spacers co-operate only with the DPM Spring Plug that is included.

• Short Spacer: 15 lbs approx.
• Medium Spacer: 19 lbs approx.
• Long Spacer: 23 lbs approx.

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

Lifetime Warranty.

Made in Greece – EU.
