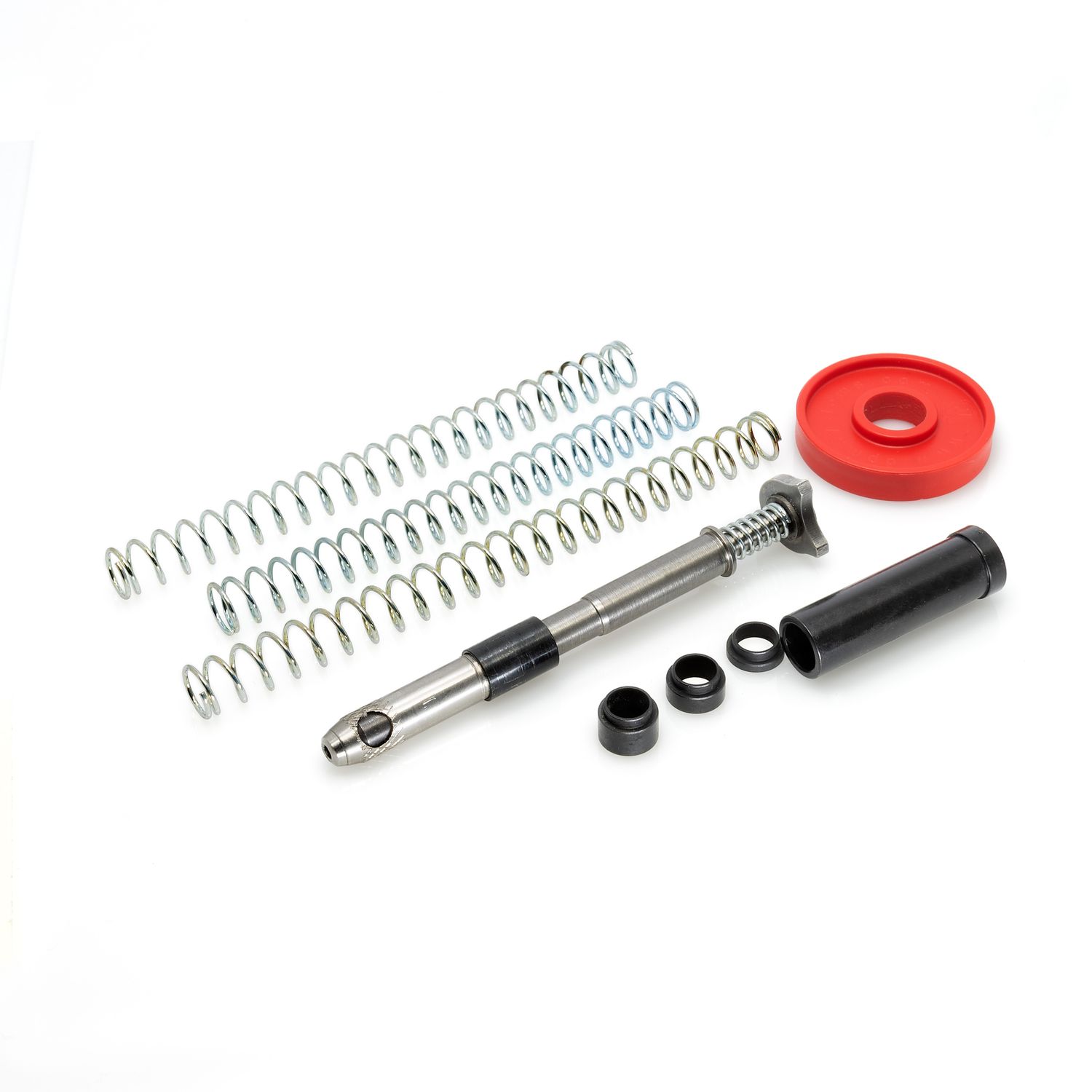

The system includes 3 different in length spacers, a spring plug, a red pressure plate tool, a metallic cup screw tool and 3 different external springs. The long spacer offers a heavy buffer effect, moving to shorter spacers a lighter buffer effect is being noticed.
Washers differentiate only the buffer force (slide full open position) and the external springs differentiate only the slide closed position (slide on the battery).
**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**
Power Rates
Short Spacer With: |
Slide on the battery (idle position) |
Slide full open position (approx.) |
Short Spring |
7.0 lbs |
17.6 lbs |
Medium Spring |
7.71 lbs | 17.6 lbs |
Long Spring |
8 lbs | 17.6 lbs |
Medium Spacer With: | Slide on the battery (idle position) |
Slide full open position (approx.) |
Short Spring | 7.49 lbs | 22 lbs |
Medium Spring | 8.15 lbs | 22 lbs |
Long Spring | 8.4 lbs | 22 lbs |
Long Spacer With: | Slide on the battery (idle position) | Slide full open position (approx.) |
Short Spring | 7.93 lbs | 26.4 lbs |
Medium Spring | 8.6 lbs | 26.4 lbs |
Long Spring | 9 lbs | 26.4 lbs |
Overall Advantages
