DPM Mechanical Recoil Reduction System for Kimber KDS9c 4.09" Barrel

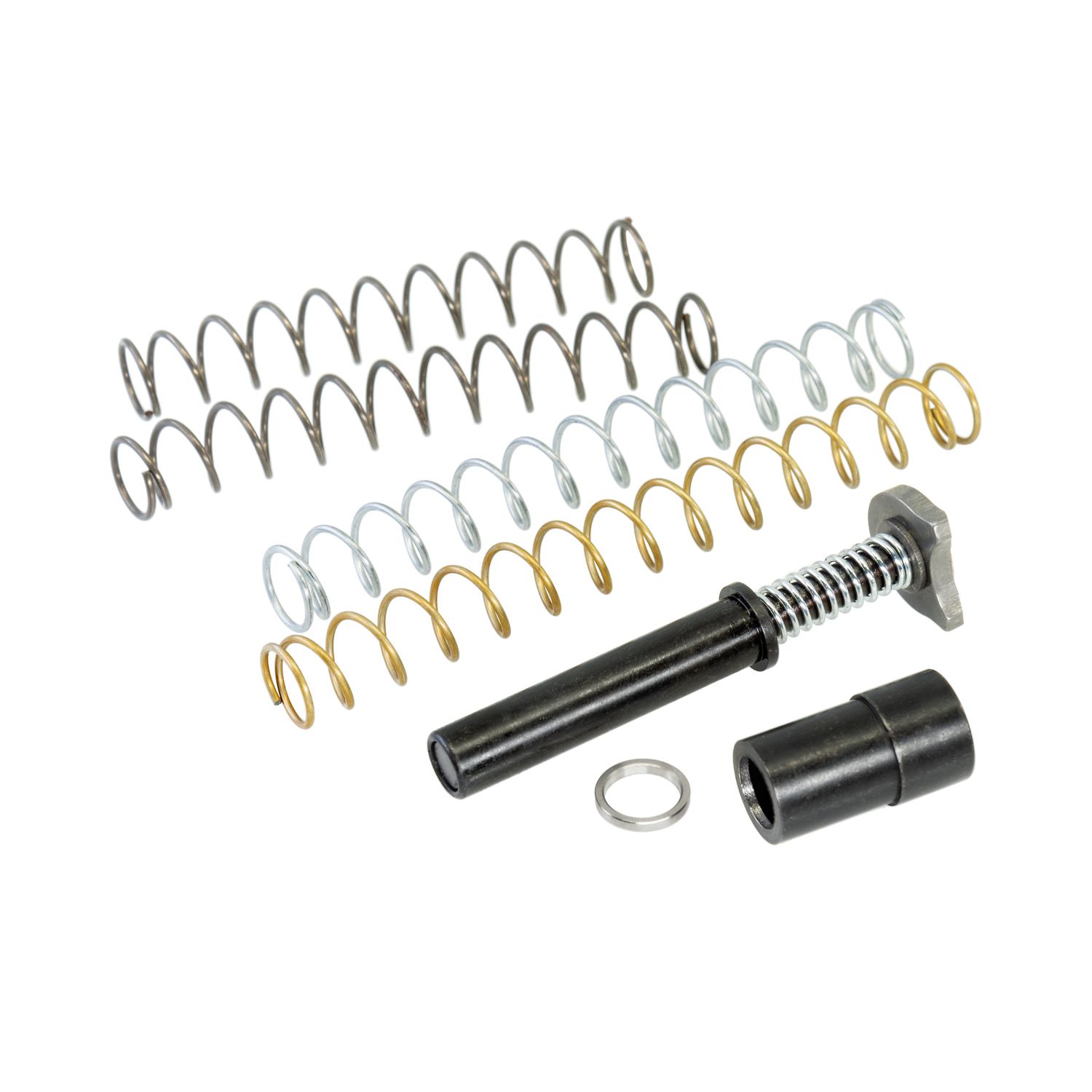

The system works due to the multi-spring intricate rod (three springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame.

The Spring Plug must always be installed when the DPM Recoil Rod and springs are used.

The active springs are offering additional buffer to the mechanism, this is a new innovation of DPM Systems.

The 2 black coated springs have wire diameter 1.1mm and are stronger than the 2 silver and gold coated springs with wire diameter 1mm.

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power Rates

Slide on the battery (idle position)

• Silver Short Spring (1.0mm): 6.2lbs
• Gold Long Spring (1.0mm): 7.3lbs
• Black Short Spring (1.1mm): 7lbs
• Black Long Spring (1.1mm): 8.15lbs

Total force (Slide full open position) approx. :

• Silver Short Spring (1.0mm): 12lbs
• Gold Long Spring (1.0mm): 13.2lbs
• Black Short Spring (1.1mm): 14.3lbs
• Black Long Spring (1.1mm): 15.4lbs

The spacer is an optional use and provides +2.5 lb (approx.) to the total force of the system for each spring.

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy
