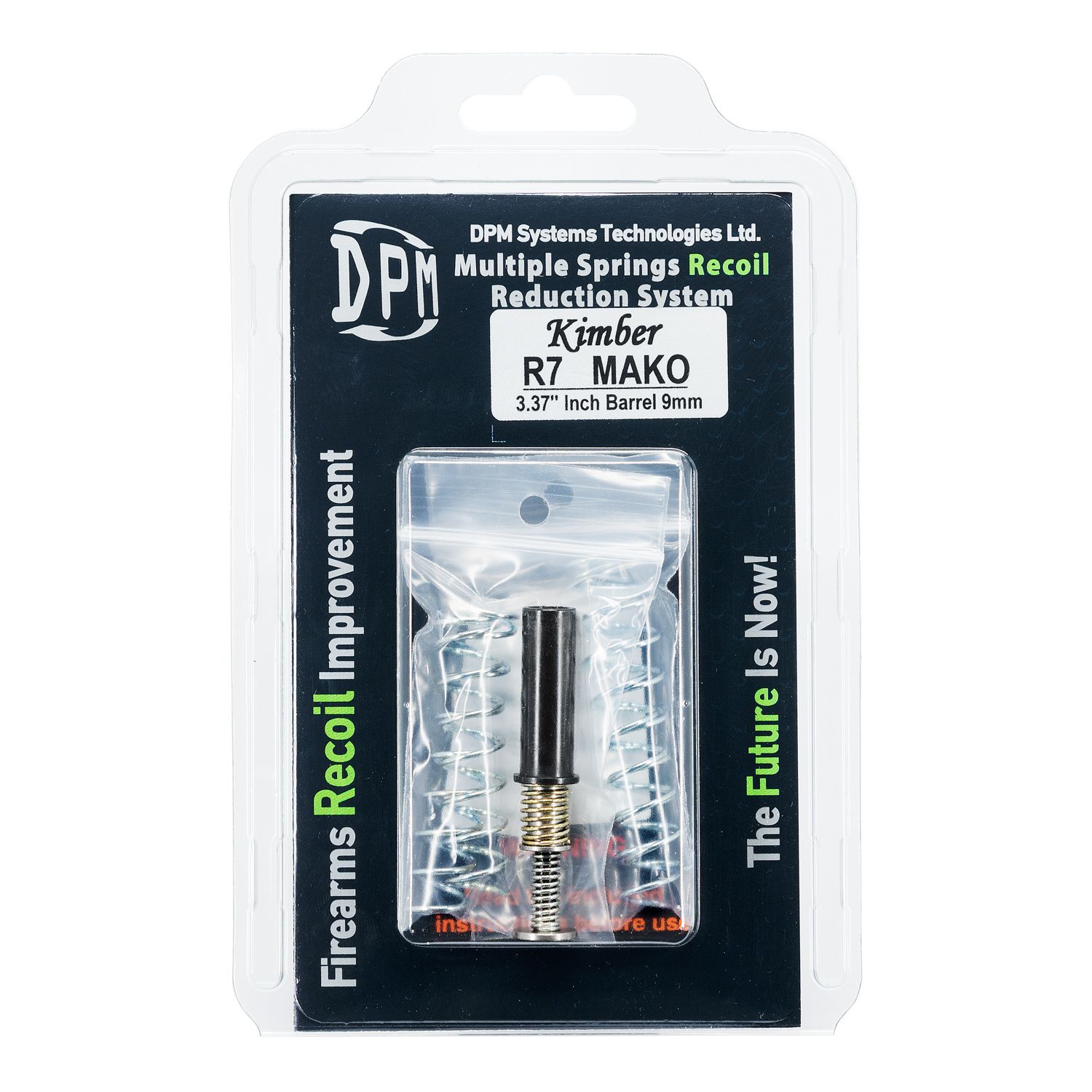

DPM Telescopic Recoil Reduction System for KIMBER R7 MAKO

The DPM Telescopic Recoil Reduction System is a direct replacement for the stock recoil rod and does not change the configuration of the pistol. This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol, using more efficient the small internal space of the subcompact pistols.

The 3 springs of the system are aligned and gradually compressed, so as to offer an elastic effect of the slide travel and to control the movement of the slide, so it never rams on the frame. The system includes 4 external springs (2 x 1.15mm wire diameter and 2 x 1.2mm wire diameter), all with different power rates, with the longer spring always being the stronger, so the user can fine tune the pistol recoil with different type of ammunition according to his/hers personal standards.

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power Rates

Soft Spring 1.15mm

Slide on the battery (idle position)

• Short: 3.9kg / 8.6 lbs
• Long: 4.2kg / 9.25lbs

Slide full open position (appox.)

• Short: 5.5kg / 12.1lbs
• Long: 6kg / 13.2lbs

Standard Spring 1.2mm

Slide on the battery (idle position)

• Short: 4kg / 8.8lbs
• Long: 4.4kg / 9.7lbs

Slide full open position (appox.)

• Short: 6,5kg / 14.3lbs
• Long: 7kg / 15.4lbs

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

Lifetime Warranty.

For changes to features, like comp set-up, threaded barrels, slide conversions etc., contact us via email at info@dpmsystems.com before placing your order. In some cases, we need to determine whether a custom product is required.
