The DPM Mechanical Recoil Reduction Rod is a direct replacement for the stock recoil rod and does not change the configuration of the pistol.

This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame.

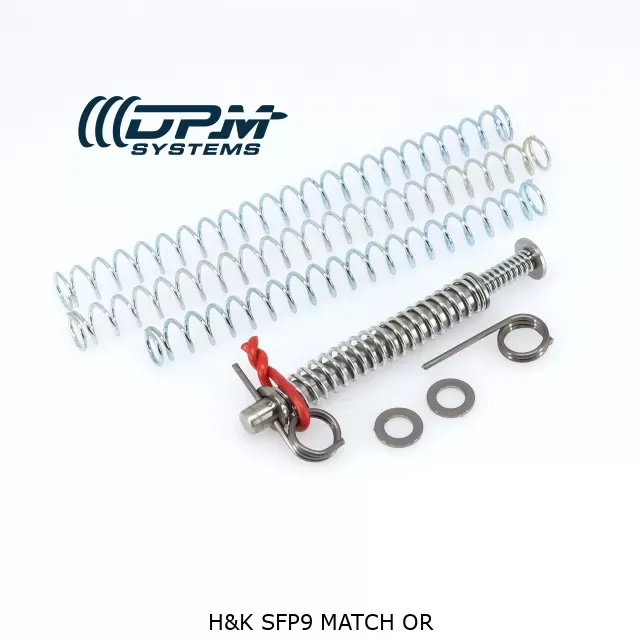

The system includes 1 washer and a safety pin preinstalled on the rod, 1 spare washer and 4 external springs. The washer is mandatory to be installed always. The external springs are different in length with the longer offering heavier slide travel and locking than the shorter spring.

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power Rates

Slide on the battery (idle position):

• Short: 9lbs
• Short/Medium: 10lbs
• Medium/Long: 11 lbs
• Long: 12 lbs

Total Power (slide full open position): 24 lbs

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

• For changes to features, like comp set-up, threaded barrels, slide conversions etc., contact us via email at info@dpmsystems.com before placing your order. In some cases, we need to determine whether a custom product is required.

Lifetime Warranty.
