DPM Mechanical Recoil Reduction System for DPM CANIK TP9 SFx 5.2″ Barrel

This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame.

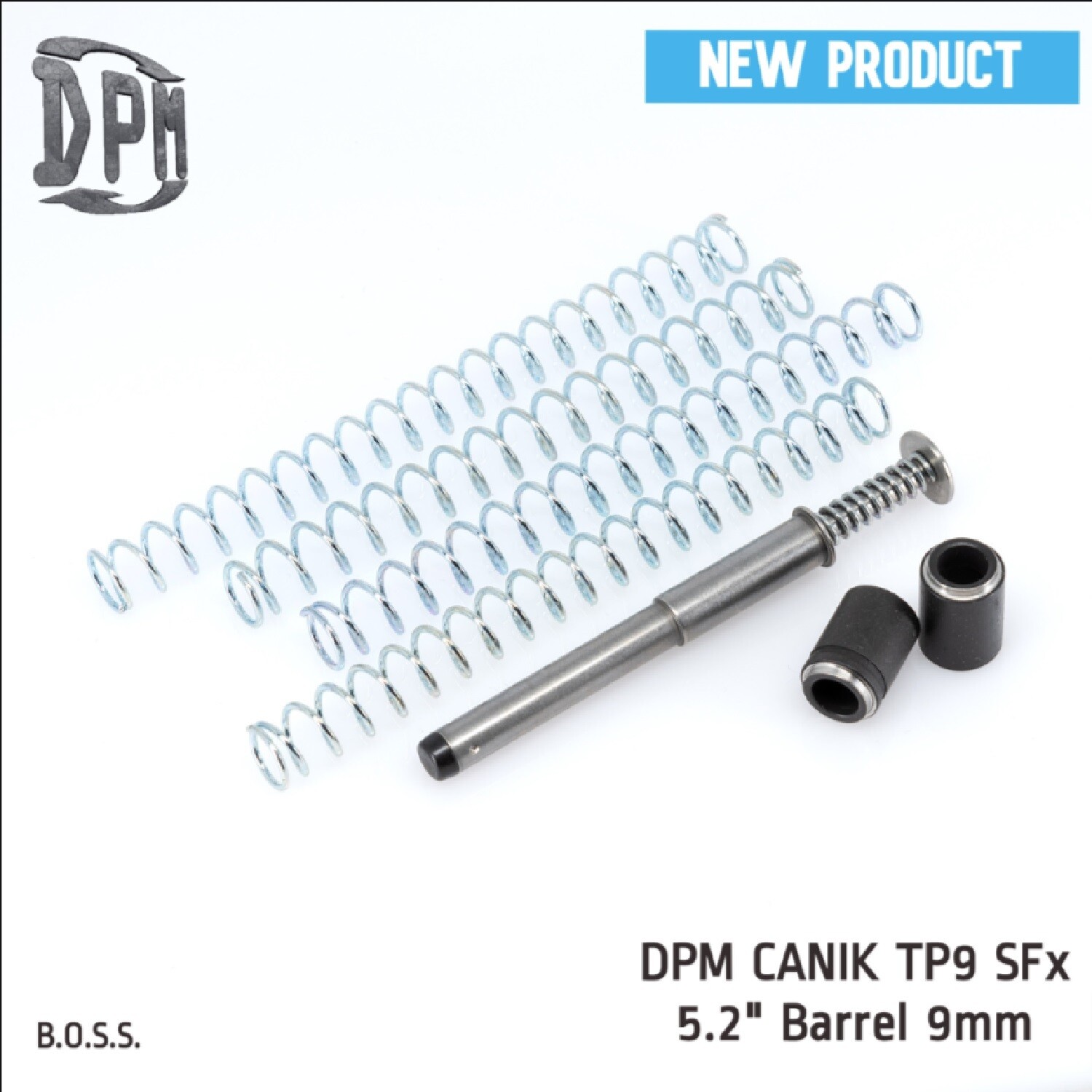

The system includes 2 different spring plugs and 5 different external springs.

Power Rates

Slide on the battery:

Short Spring: 6.6lbs

Medium/Short Spring : 7.5 lbs

Medium/Long Spring: 8.4 lbs

Long Spring: 9.25 lbs

Total force – Slide full open position:

Short Plug: 16 lbs (Approx.)

Long Plug: 19 lbs (Approx.)

The spring plug must always be installed when the DPM Recoil Rod and springs are used.

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy
