DPM Mechanical Recoil Reduction System for CZ 75 P07 Duty Version 1 & 2

The Mechanical Recoil Reduction System is a direct replacement for the stock recoil rod and does not change the configuration of the pistol.

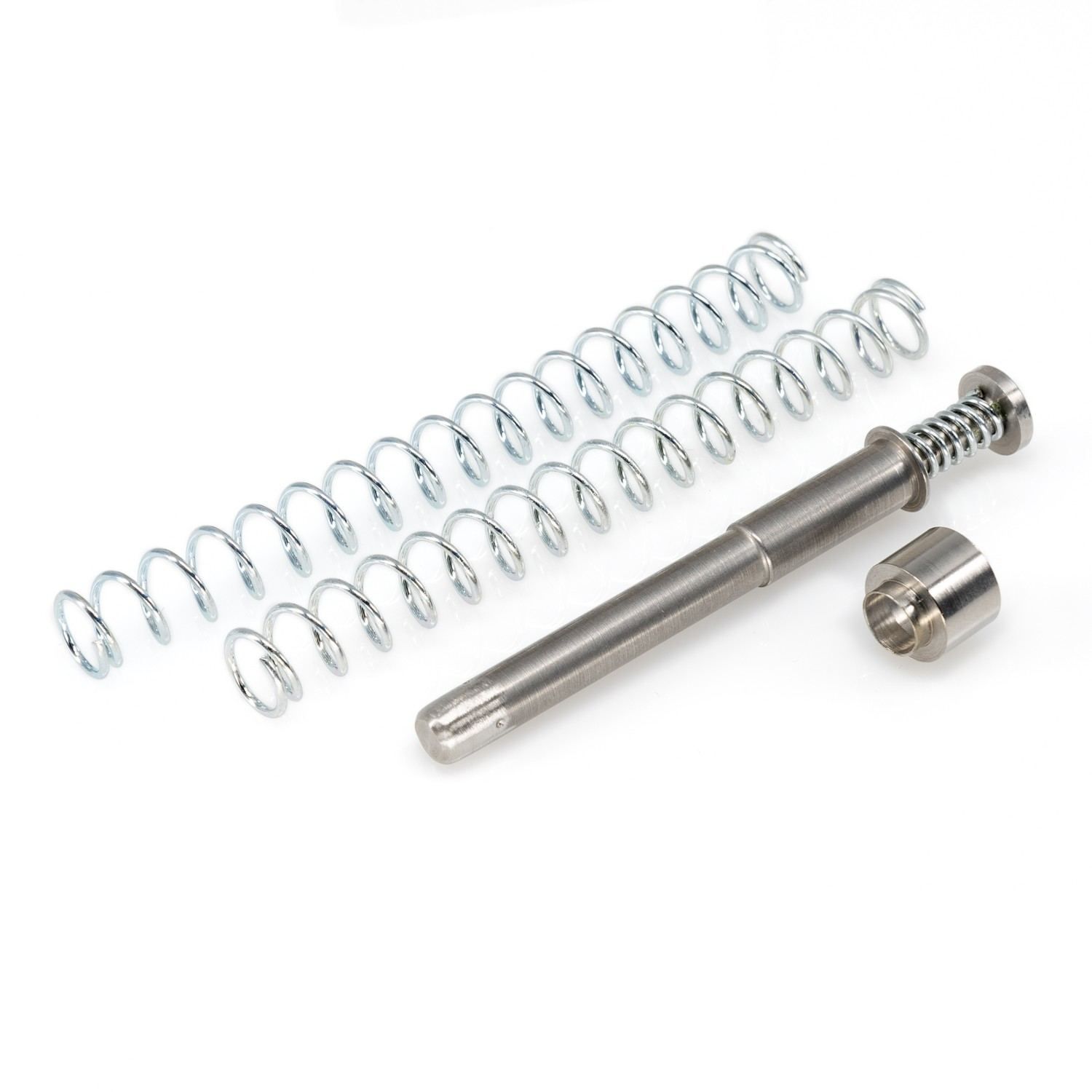

This system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame. The system includes 1 spring plug and 2 different external springs. The external springs are different in length, the long spring is heavy and the short is light so the shooter can fine tune the pistol on the opening and locking positions (slide on the battery) according his/hers personal standards.

ATTENTION:

The spring plug must always be installed with the DPM System ONLY in Version 2 model.

To identify which P-07 version you own (1 or 2), insert the DPM guide rod from the front side of the slide and if it stops to the first flange,

then you have the Version 1 where you should not install the spring plug.

If the DPM guide rod pass through to the end of it, then you have the Version 2 where installing the Spring Plug is mandatory.

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power Rates

Slide on the battery (idle position)

• Short Spring: 10lbs

• Long Spring: 11lbs

Total force (slide full open position): 24lbs (approx.)

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

Made in Greece - EU.
