DPM Mechanical Recoil Reduction System for 1911 5" BUSHING BARREL 10MM AUTO & 460 ROWLAND - 12 ADJUSTABLE SETTINGS

The DPM Mechanical Recoil Reduction Rod is a direct replacement for the stock recoil rod and does not change the configuration of the pistol.

The system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame.

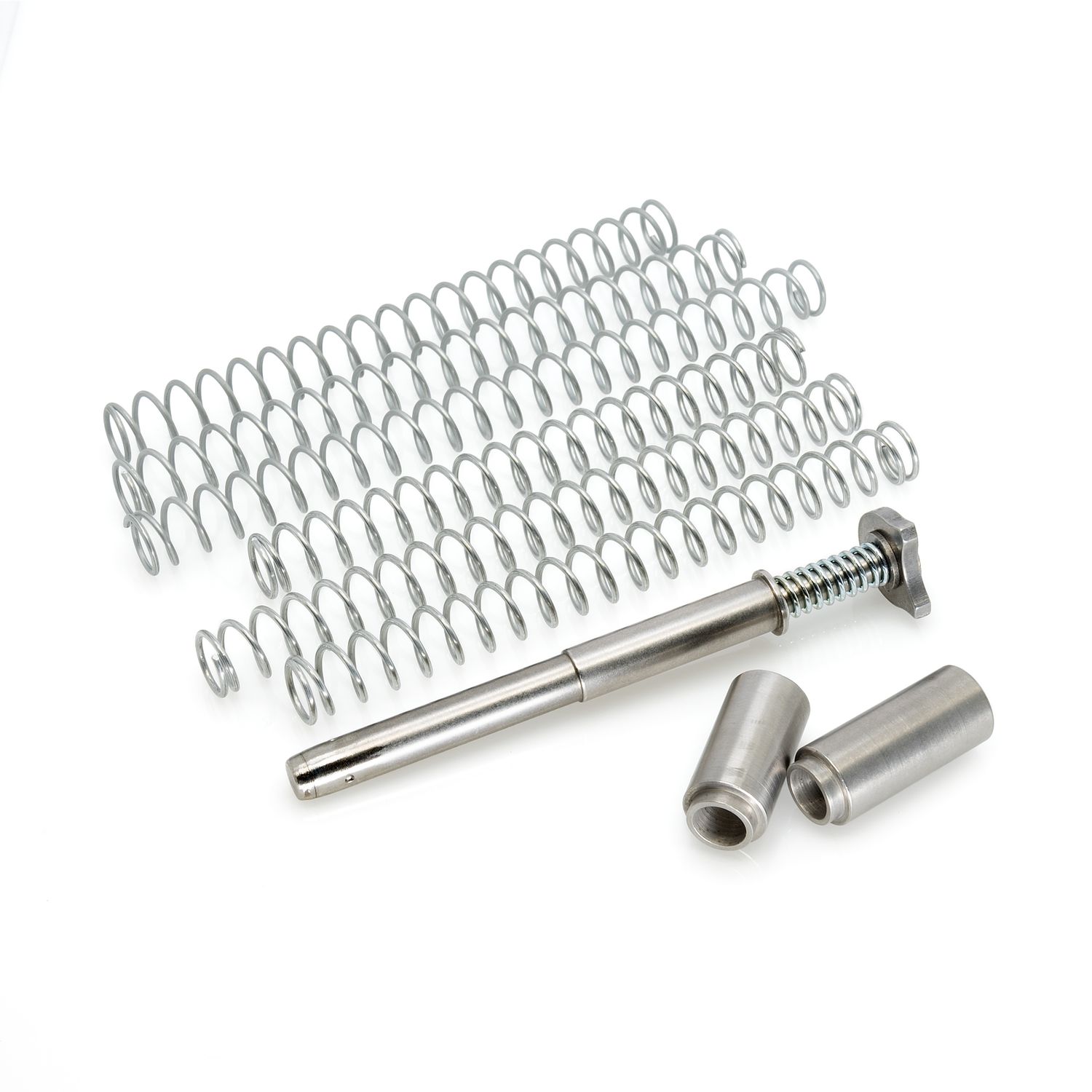

The system includes 2 different spring plugs and 2 sets of 3 (1.10mm & 1.15mm wire diameter) external springs. The adjustable spring plugs offers two different buffer forces (slide full open position) and the external springs differentiate only the slide closed position (slide on the battery).

The 1.10mm springs are softer than the 1.15mm springs.

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power Rates

Slide on the battery:

External Springs 1.10mm

• Short: 9lbs / 4kgs
• Medium: 10lbs / 4.5kgs
• Long: 11lbs / 5kgs

External Springs 1.15mm

• Short: 12lbs / 5.45kgs
• Medium: 13lbs / 5.9kgs
• Long: 14lbs / 6.35kgs

Slide Full Open Position

Short Plug: 24lbs / 10.9kgs (approx.)

Long Plug: 30lbs / 13.6kgs (approx.)

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy
